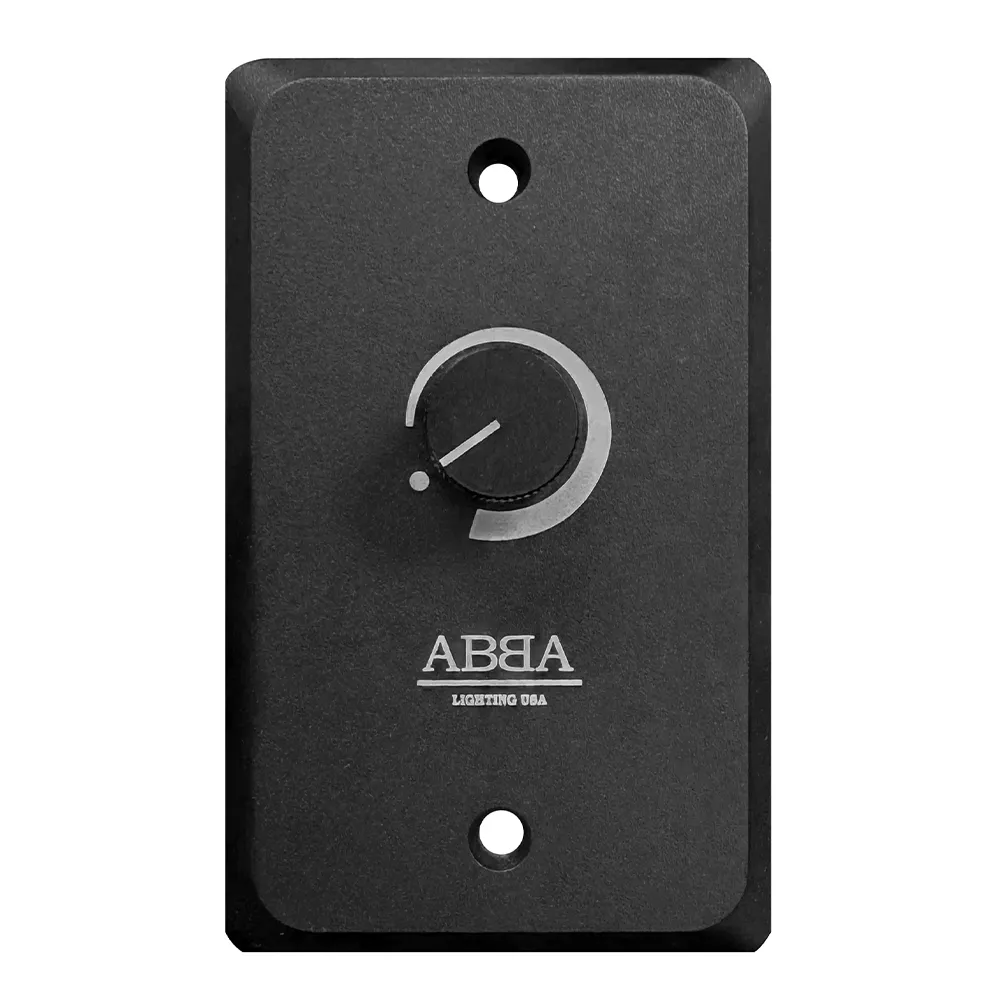

The DMR20W is a compact, heavy-duty low-voltage dimmer accessory designed to give you smooth brightness control across your 12–15 VAC landscape lighting runs. Built for reliability and simplicity, it allows installers and homeowners to fine-tune light levels without changing transformers or rewiring entire systems — making it an ideal accessory for paths, gardens, hardscapes, and architectural accent lighting powered by low-voltage fixtures.

---

✅ Key Features & Benefits

• Designed for 12–15 VAC systems
  Engineered specifically for standard low-voltage landscape lighting, the DMR20W integrates into 12–15 VAC lines, making it an excellent fit for LED or halogen fixtures driven by a landscape transformer.

• Up to 120W / 10A load capacity
  With support for 120 W maximum power and 10 amps (MAX) capacity, this dimmer can control a substantial group of fixtures on a single run — ideal for small to mid-sized lighting zones without needing multiple controllers.

• Precise brightness control
  Instead of being locked into full-brightness output from your transformer, the DMR20W lets you adjust light levels to suit the mood, reduce glare, or balance intensity between different areas of the landscape.

• Low-voltage, user-friendly solution
  Because it operates on the low-voltage side (12–15 VAC), the dimmer works within the same environment as your fixtures and cabling, helping keep wiring simpler and safer compared with line-voltage wall dimmers.

• Rugged black finish
  The black finish helps it blend into transformer enclosures, junction areas, or discreet mounting points, keeping the focus on your lighting design rather than the control hardware.

• Built for challenging temperatures
  Rated to operate in ambient conditions down to approximately −20°, the DMR20W is suitable for cold-weather regions where outdoor components must remain dependable in low temperatures.

---

🔧 Technical Specifications

⚠️ Important Usage Note
The IP2- rating means this dimmer should be installed in a dry or protected area (e.g., inside a transformer housing, weatherproof box, or sheltered enclosure). It is not intended for direct exposure to rain or irrigation.

---

🎯 Typical Applications

The DMR20W is ideal wherever you want finer control over brightness in a 12–15 VAC lighting setup, such as:

• Path & walkway lighting
  Reduce output to create a softer, more comfortable glow along walkways and garden paths while still maintaining safe visibility.

• Accent & feature lighting
  Tune brightness on tree uplights, wall washers, or sculpture spotlights so they complement the rest of the scene instead of overpowering it.

• Outdoor seating & entertainment areas
  Dial lights down for a relaxed evening atmosphere on patios, decks, or pergolas, then bring them up when more task lighting is needed.

• Zoned landscape systems
  Use a DMR20W on individual runs or zones to balance intensity between different parts of the property — for example, a brighter driveway zone and a dimmer garden zone.

---

🧰 Installation & Best-Practice Notes

• Location & protection
  Because of the IP20 rating, always mount the dimmer in a protected environment: inside a weatherproof box, transformer cabinet, or other enclosure shielded from direct water exposure.

• Match load to rating
  Check the total wattage of all fixtures on the controlled run. Ensure the combined load stays at or below 120 W and 10 A to avoid overload and maintain long-term reliability.

• Placement in the circuit
  Install the DMR20W on the low-voltage side, between the transformer’s 12–15 VAC output and the fixture run you want to control. Follow polarity and wiring guidelines appropriate for your system.

• Multiple zones
  For multi-zone systems, use one DMR20W per circuit you want individually dimmable. This allows one transformer to supply several branches at different brightness levels, each managed by its own dimmer.

• Testing and adjustment
  After wiring, bring the system up at a conservative dim level first, then gradually increase brightness to confirm stable operation and desired appearance before closing up enclosures.

---

Key Specifications

• Wattage Capacity: 120 Watts
• Operating Range: 12-15 VAC
• Current Capacity: 10 Amps
• IP Rating: IP20
